Use-cases

First use-case

Use case

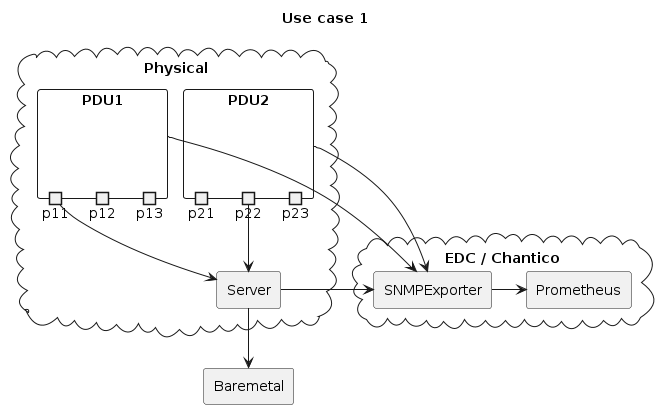

The first considered use case of chantico is a server plugged on two PDU outlets from two different PDUs with a baremetal offering (with IPMI interface access to the consumer).

Sequence diagram

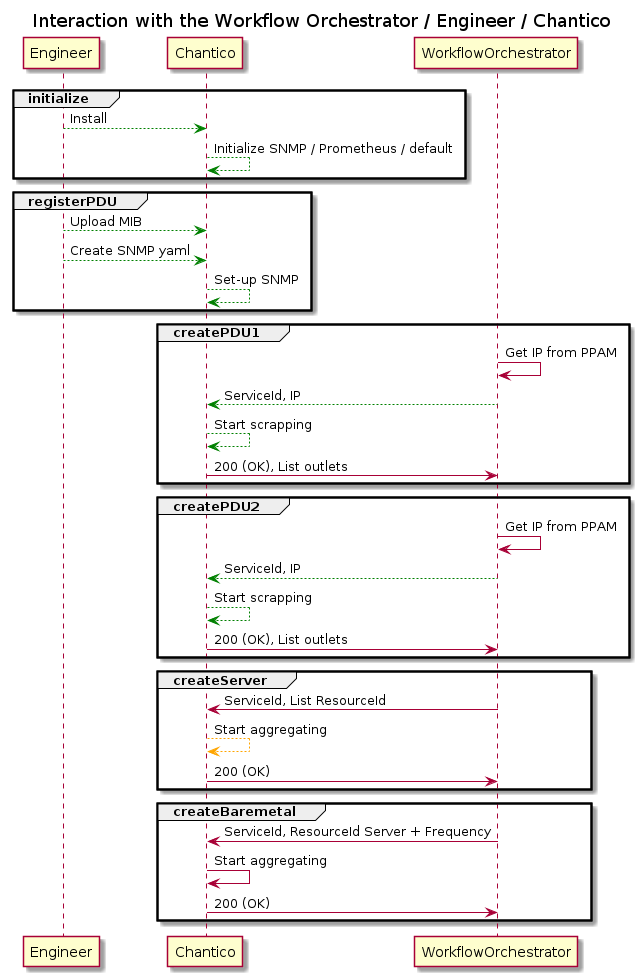

The sequence diagram are the interactions between chantico, the workflow orchestrator and the engineer.

Architecture

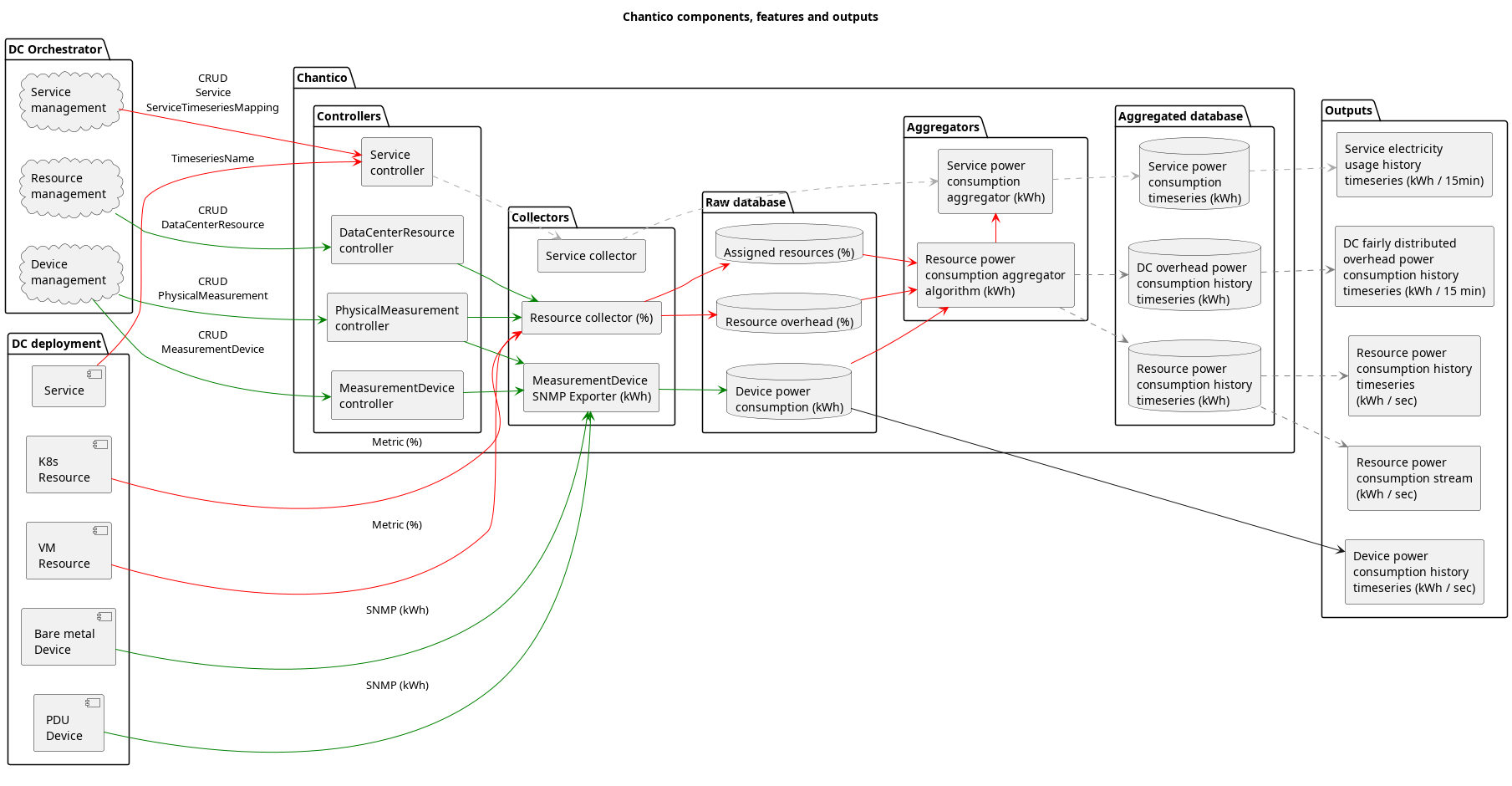

The components, features and outputs of chantico related to the first use case and later uses cases as context are demonstrated in the following flow diagram.
